Leviga

Leviga

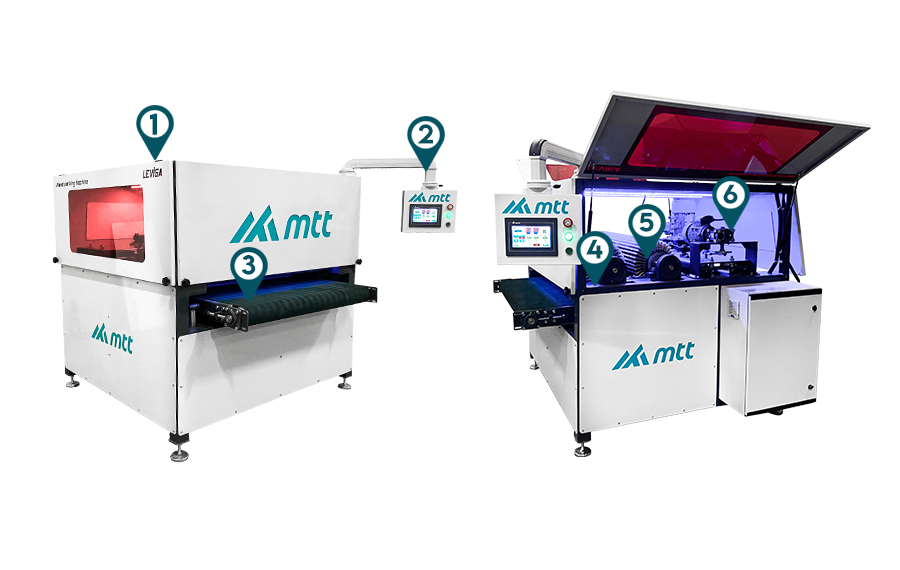

1. Dust Extraction Section

By making piping to the inlets in this area, the dust generated during sanding is transferred to the dust extraction unit.

2. Touch PLC Screen

It helps to give commands to the units to obtain a healthy result in the product to be processed. The speeds of the drums, discs and belt can be changed automatically. At the same time, the band height can come to the written value automatically.

3. Conveyor Belt System

Thanks to the automatic adjustable height system, maximum efficiency is achieved on the surface in sanding operations. Thanks to the tape with a special surface used, a non-slip floor is provided.

4. Print Cylinders

Thanks to the rubber-coated shafts, it is ensured that the products that are sanded do not slip.

5. Drum Sanding System

In this section, which consists of 2 units, it is ensured that the first sanding of the surface is done, starting from the coarse sand. Here, the sandpaper life is extended by choosing tampico grass abrasives.

6. Disc Sanding System

It enables the products passing through the drum sanding unit to be sanded by oscillating (rubbing) on ??indented surfaces with the help of finer grit sandpapers. Disc sanders with Tampiko grass extend the life of the sander. In this way, the surface quality in the final product gives maximum results.
